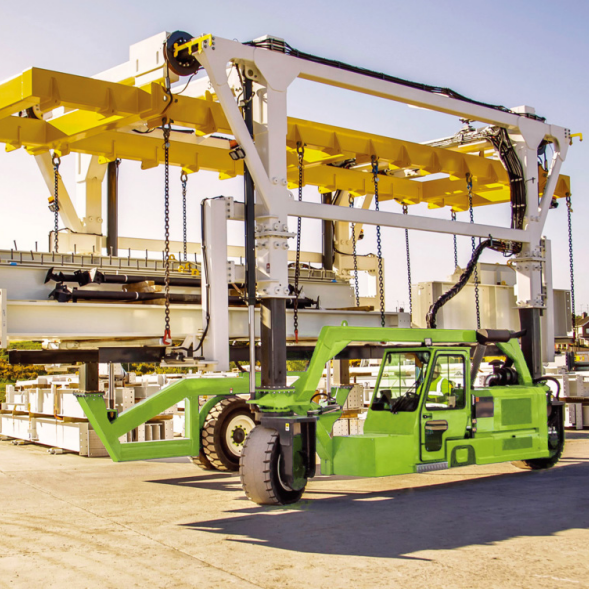

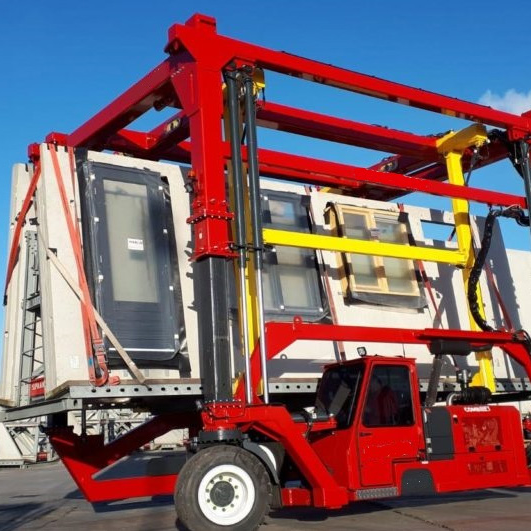

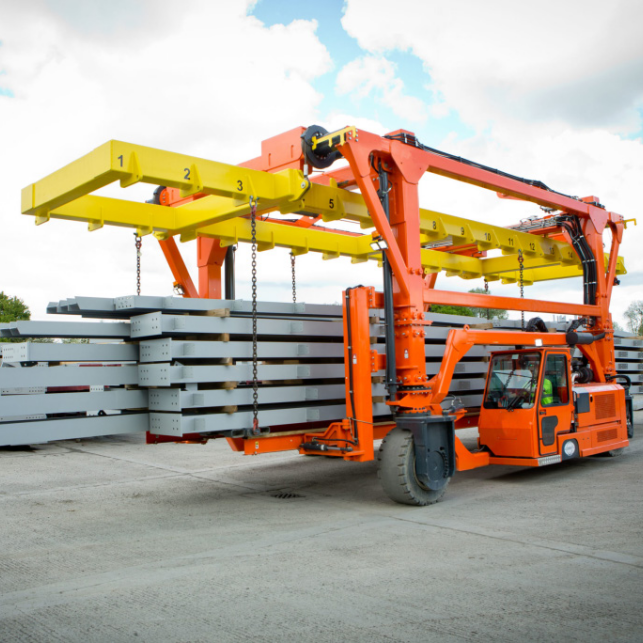

China Straddle Carrier Suppliers | Electric & Diesel Options from Leading Factory
Flexible Capacities
Available in 35T, 60T, and 80T models to suit diverse operational requirements.
Engine & Power
Equipped with high-performance Weichai Engines (China Stage II) up to 176KW.
Solid Tires
Standardized solid tires across all models for maximum durability and stability.
| Specification | 35T Model | 60T Model | 80T Model |
|---|---|---|---|
| Capacity | 35T | 60T | 80T |
| Length x Width x Height |
9300×5200×5600mm / 7210×5200×6200mm |
9350×5800×6450mm | 12600×6100×6450mm |
| Effective inner width | 3200mm | 3850mm | 3850mm |
| Wheel base | 6110mm | 6700mm | 7500mm |
| Max Lifting Height (Below spreader) | 4700mm & 6250mm | 6400mm | 6400mm |
| Min. Ground Clearance | 240mm | 320mm | 320mm |
| Tire Qty | 4 | 4 | 8 |
| Deadweight (not containing spreader) | 19T / 21T | 35T | 45T |
| Weichai Engine - China Stage II | 103KW | 129KW | 176KW |
| Closed Travel Pump | Hytek / Danfoss / PMP | ||
| Empty-load max. speed | 115 m/min | 80 m/min | 80 m/min |
| Full-load max. speed | 80 m/min | 50 m/min | 50 m/min |
| Turning Radius | 6950mm | 8900mm | 13000mm |
| No-load / full-load Grade ability | 6% / 13% | ||
| Control mode | Cab (remote control optional) | ||
| Tires | Solid tire | ||
| Lifting Tools | Chain + Lock / Automatic | Oversized Load Spreader | |
Frequently Asked Questions
What are the lifting capacity options available for this equipment?
This series offers three standard lifting capacities: 35T, 60T, and 80T, designed to accommodate various material handling volumes and weights.
What engines and travel pumps are used in these machines?
They are powered by reliable Weichai Engines (China Stage II) with power ratings of 103KW, 129KW, or 176KW depending on the model. They utilize premium Closed Travel Pumps from brands like Hytek, Danfoss, or PMP.
What are the gradeability limits under loaded and empty conditions?
All models share a maximum gradeability of 6% under no-load conditions and up to 13% under full-load conditions, allowing for safe operations on sloped surfaces.
Can these vehicles be operated remotely?
Yes. While the standard control mode is via a built-in Cabin (Cab), a remote control option is available to enhance operational safety and flexibility.
What type of tires and lifting tools are equipped?
All models feature heavy-duty solid tires. The 35T model uses a Chain + Lock / Automatic lifting tool configuration, while the larger 60T and 80T models are equipped with an Oversized Load Spreader.
