Container Gantry Crane

Let’s take a closer look at container gantry cranes -- they’re pretty much the backbone of modern shipping and logistics. These massive machines have totally changed how cargo is handled at ports and container terminals, making everything smoother and faster. They’re like engineering marvels, blending impressive design with tech-savvy operations that keep global supply chains ticking. So, in this overview, I want to walk you through what these cranes are, how they work, and why they’re such a big deal in the shipping world.

So, what exactly is a container gantry crane? Think of it as a giant, high-tech arm used to move those big intermodal containers between ships and docks. Often called ship-to-shore cranes, they’re not only huge but also packed with sophisticated gear to get the job done with precision and speed. Their main job? To lift containers onto ships or off them, and do it quickly and safely, so goods keep flowing without a hitch.

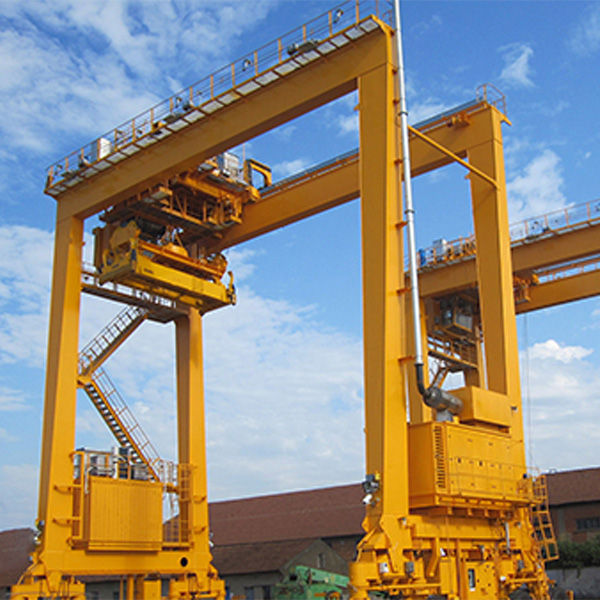

Now, let’s break down how they’re built. The framework is enormous - usually made of super-strong steel designed to handle crazy loads and tough maritime weather. The crane stands on two vertical legs on rails, supporting a long horizontal beam called the girder, which stretches across the ship. This girder can move side to side, thanks to a system of trolleys-sort of like shopping carts - that run along its length. The trolleys carry the hoisting machinery responsible for lifting those hefty containers.

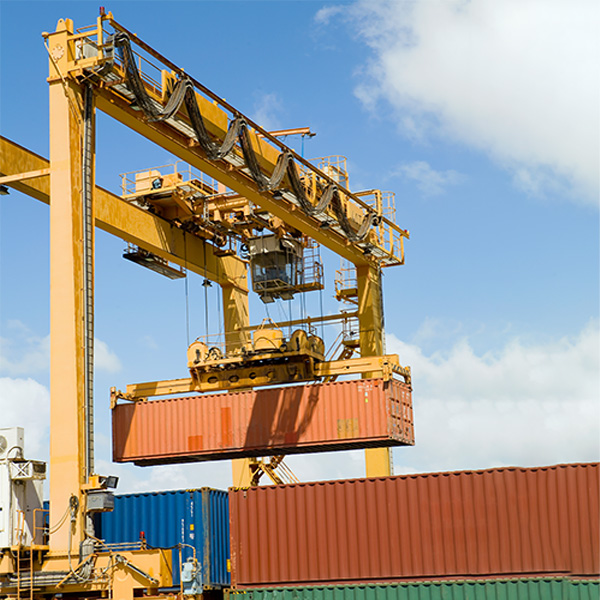

The hoisting system is kinda the heart of the crane. It includes winches, motors, and lifting devices built to handle containers that can weigh over 30 tons when fully loaded. Strong steel cables hook everything up securely, and there are stabilizers to keep everything steady and prevent sway during operation.

The boom? That’s basically an extension of the girder that reaches over the ship, giving the crane enough reach to pick containers from deep within the vessel’s stack. Sometimes, these booms are retractable, so they can extend or retract depending on what’s needed - pretty clever, right?

And don’t forget about the operator’s cabin. It's usually perched on the girder or trolley, giving the operator a clear view of the entire operation. Modern cabins are designed to be ergonomic and come loaded with smart controls, making those precise moves a whole lot easier.

Technological stuff? Oh yeah, these cranes have come a long way. Today, many are automated or remotely controlled, thanks to fancy algorithms and sensors. They can operate with minimal human input, which reduces mistakes and ramps up the throughput -- meaning ships get loaded and unloaded way faster.

Sensors and monitoring tools have also become standard - they include laser scanners, cameras, GPS, and more, providing real-time data on everything from container positions to potential obstacles. This info is processed on the fly, helping ensure everything runs smoothly and safely.

Energy efficiency? It’s a big deal, too. Newer cranes incorporate tech like regenerative braking, LED lighting, and eco-friendly power options - cutting down on energy use and costs, all while being better for the planet.

And the software systems? They’re the brain behind the operation - integrated with everything from terminal management to logistics software. They enable seamless communication between cranes, gear, and control centers, improving decision-making and planning.

As for operational efficiency, these cranes are game-changers. They can handle loads quickly, with high-speed hoisting and super-precise placement - so ships don’t sit around idle. They also stack containers neatly, optimizing space and cutting down re-handling times. Plus, smart maintenance - using sensors and predictive tech - keeps these giant machines up and running, reducing unexpected downtime.
