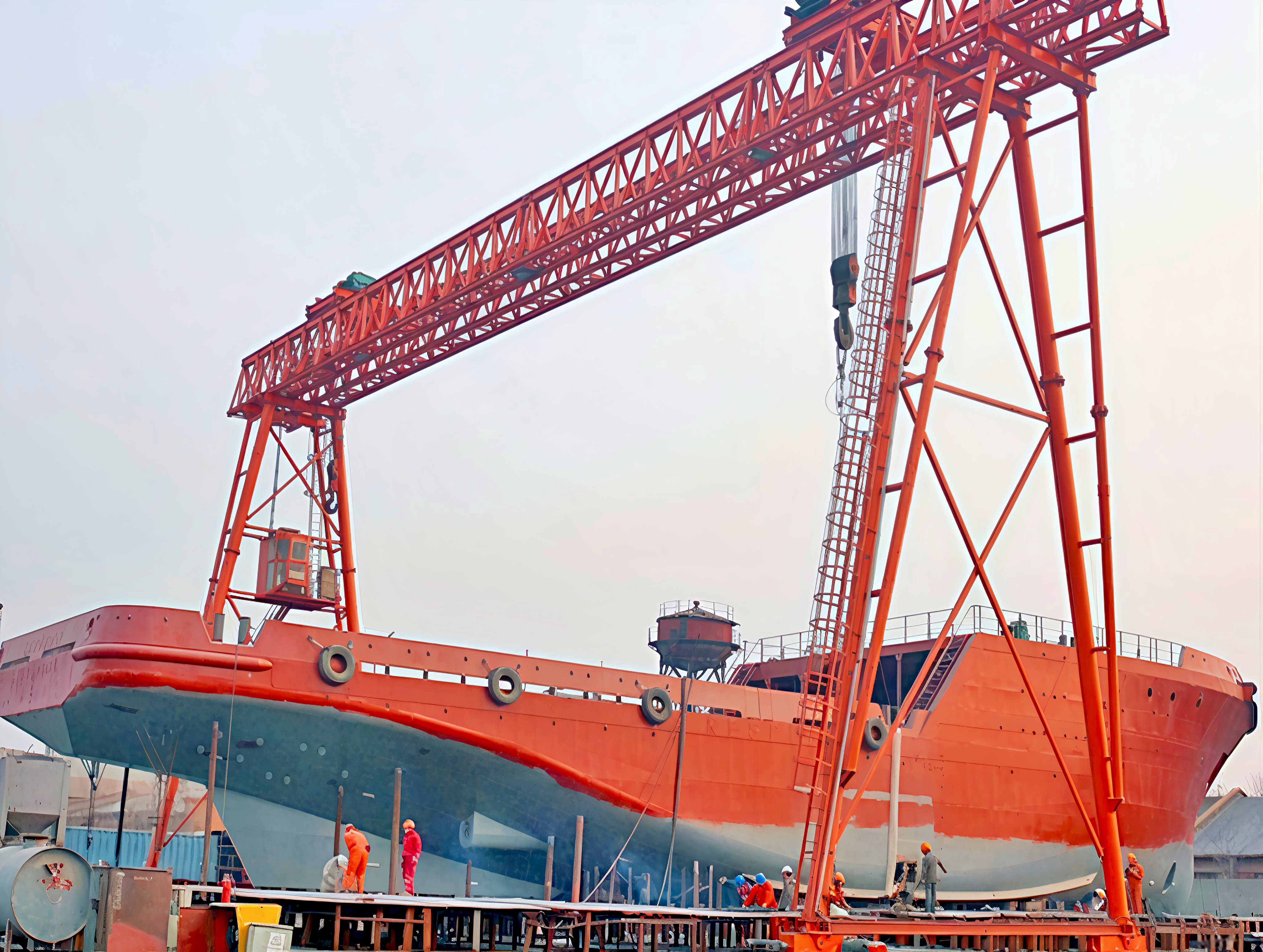

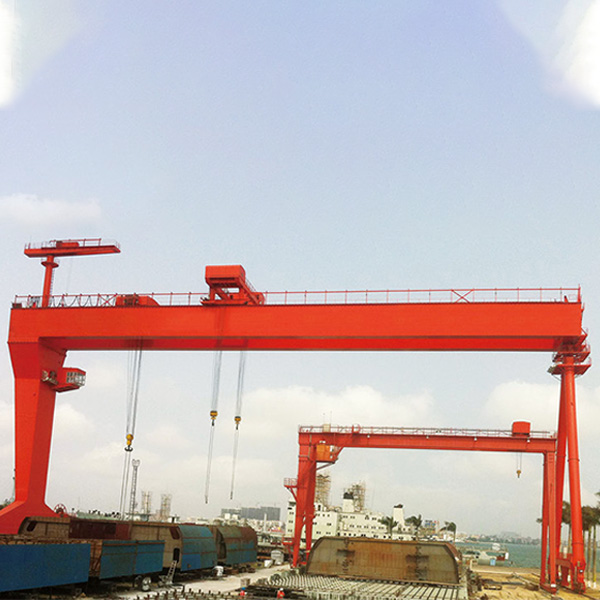

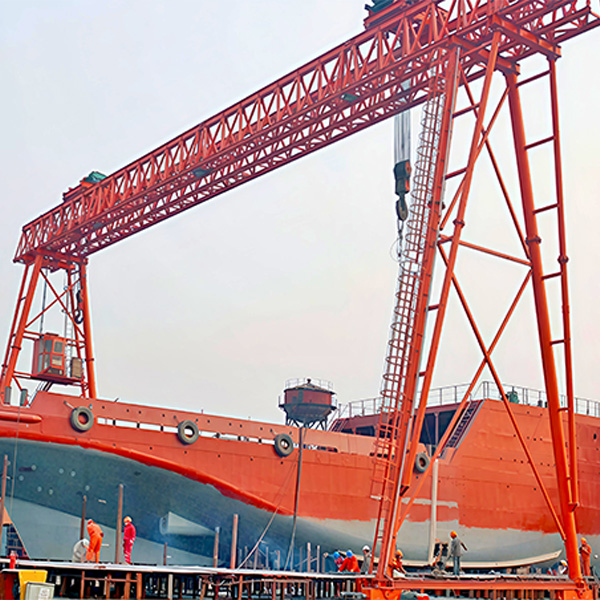

Shipbuilding Gantry Crane

Advantages:
Turning over and closing of large steel structures;
Lifting, loading and unlaunching marine modules and offshore platforms

Application scope:
Shipyard fabrication sites;
Large steel structure assembly and welding platforms.

Product Description

You know, when you picture a shipyard bustling with activity - massive ships being built, metal clangs echoing through the air - there's one piece of machinery that's pretty much the backbone of it all: the shipbuilding gantry crane. These towering giants aren't just your average cranes; they're true marvels of engineering and human innovation. Without them, building massive ships like cargo carriers, ocean liners, or even military vessels would be nearly impossible. In this post, I want to take you on a journey inside these incredible structures - exploring what makes them tick, their specs, and how vital they are to modern shipbuilding.

So, what exactly is a gantry crane when you see one? Well, imagine a huge steel framework that sits over a ship in the making. It usually features one or more trolleys that glide along tracks. These cranes can lift thousands of tons, so they're built tough enough to handle the harsh conditions of the shipyard - from salty, corrosive air to heavy, awkward loads. Pretty incredible, right?

Here are some of the key specs you might find interesting

Span Length

This is how wide the crane can reach - it could be anywhere from about 30 meters to over 150 meters. That’s a huge working area!

Lifting Capacity

This is the amount of weight they can handle. Typical cranes lift anywhere from 50 tons to nearly 900 tons, though specialized cranes can go even heavier, especially for those mega ships.

Lifting Height

How high they can lift - often 50 meters or more - giving workers the room to assemble those giant ship parts safely.

Speed and Mobility

It’s not just about lifting heavy stuff; it’s doing it smoothly and efficiently. Modern cranes have awesome motors and gear systems that let operators control the movement precisely.

Control Systems

These days, cranes are equipped with high-tech controls - think joysticks, sensors, or even computer systems - to make operations safer and more accurate.

structures

Now, these cranes are really the heartbeat of the shipbuilding process. From laying the keel (which is kind of like the ship’s backbone) to installing the upper structures, they’re constantly moving and adjusting. They keep everything running smoothly, almost like a well-oiled machine.

Here’s how they fit into the stages of shipbuilding

And if you think crane tech is stuck in the past, think again. The evolution of these giants is pretty fascinating. Once upon a time, they were pretty simple, often powered by human effort or basic mechanical parts. Now? They incorporate cutting-edge tech such as AI for predicting maintenance needs, IoT sensors for real-time data, and eco-friendly systems that cut down emissions.

Keel Laying

This first step is kinda like giving birth to a new ship. Gantry cranes help lift and position those huge steel sections perfectly where they need to go.

Hull Assembly

Putting together the hull requires a lot of precise lifting and alignment. Without the cranes, this would be a huge headache, risking misfits or structural issues.

Deck Installation

As the ship rises, so do the decks. Cranes help place deck components with incredible accuracy, supported by hydraulic systems and careful operator work.

Outfitting

Finally, the finishing touches. Whether installing piping or giant turbines, your cranes need to be gentle yet strong enough to handle it all.

Looking ahead, there are some exciting trends

Automation & Robotics

Soon enough, we’ll see more cranes that operate almost entirely on AI and automation, making things safer and reducing costs.

Going Green

Many shipyards are now updating cranes with energy-saving drives and even renewable power sources like solar panels.

Safety First

Modern safety features - anti-sway tech, load collision prevention, emergency brakes - are really raising the bar here.

Summarize

So, what’s the takeaway? The gantry crane isn’t just a machine - it’s a symbol of human progress, our drive to push boundaries, and turn raw materials into engineering marvels. For shipbuilders, investing in top-tier cranes is really about commitment: to quality, to efficiency, and to innovative thinking. As we look to the future, these steel giants will keep pushing the limits of what’s possible, helping the maritime industry stay at the forefront of global trade and exploration.

Honestly, in this world so dependent on sea routes and international commerce, the shipbuilding gantry crane is kind of an unsung hero. It tells a story of teamwork, precision, and hard work, from the designers dreaming up ships to the workers bringing them to life. It’s like a bridge - connecting ideas to reality, the sea to the sky, and yesterday’s dreams to tomorrow’s adventures.
